固定真空整粒机

固定真空整粒机

Vacuum mill cum sifter stationary

用途

该机主要用于制药工业固体物料的转送、加料。可与沸腾干燥机、沸腾制粒机配套使用，可直接将沸腾制粒机料车内的物料制成所需要的颗粒进入总混料桶，有效地杜绝了粉尘飞扬和交叉污染，减轻了劳动强度，提高了工作效率，同时该机在化工、食品等行业广泛使用。

APPLICATION

The machine is mainly used for transferring and charging solid materials in the pharmaceutical industry. It can work with the boiling dryer, boiling granulator, etc. It can directly make materials inside the material cart of the boiling granulator into the required granules and put them into the mixing barrel. The machine effectively prevents dust and cross contamination, reduces labor intensity and enhances work efficiency. It is also widely used in such industries as chemical industry, food, etc

原理

该机主要由真空输送系统、缓冲料仓、整粒系统、提升系统等部分组成，工作时，真空输送器启动，流化床料仓内的物料被吸送至缓冲仓内，缓冲仓内物料加满后，打开出料蝶阀，物料进入整粒腔內进行整粒，整粒合格后的物料流出到料斗。

PRINCIPLE

The machine is mainly composed of vacuum conveying system buffering silo, granule sizing system and lifting system. When it works, the vacuum conveyor starts and the materials inside the fluidized bed silo are sucked to the buffering silo. After the buffering silo is filled with materials, start the discharging butter valve, and the materials will enter the granule sizing chamber for granule sizing. The conforming materials obtained after granule sizing will flow to the hopper

特点

◆机电液气一体化设计，结构紧凑安全可靠，输送物料速度快。

◆物料密闭输送，无粉尘泄漏，实现密闭生产，完全符合GMP要求。

◆常拆卸部位采用快拆设计，方便拆卸清洗。内部无死角，易清洗，无物料残留。

◆可采用PLC控制，实现自动化操作。

FEATURES

Electromechanical liquid-gas integrated design, compact andsafe, and fast in conveying materials

The material is sealed and transported, no dust leakage, and the closed production is realized, which fully meets the requirements of GMP

The frequently disassembled part adopts quick release design

which is convenient for disassembly and cleaning. There is no dead angle inside, easy to clean, no material residue

PLC control can be used to achieve automatic operation

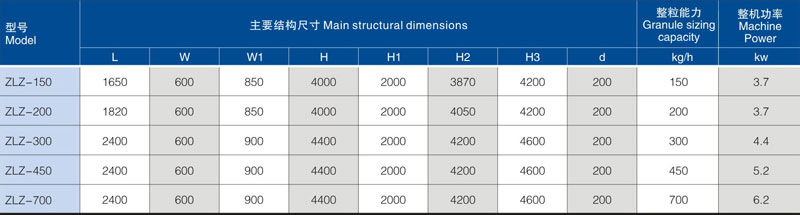

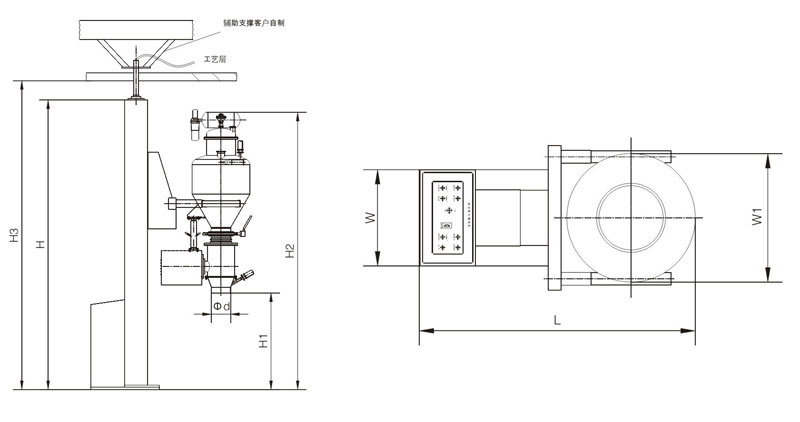

主要技术参数 MAIN TECHNICAL PARAMETERS

本公司可按用户特殊要求定制生产，如有变动，恕不预先通知!

Our company can customize the products according to special requirements of users. you will not be notified of any changes in advance
