固定提升转料整粒机

固定提升转料整粒机

Pharma lifter, for FZ/FG bowl

用途

该机主要应用于制药工业中将制粒后结团的颗粒，根据工艺要求整理出均匀的合格颗粒。同时在制药、化工、食品等行业中广泛使用。

APPLICATION

The machine is mainly used to sort out even and conforming granules according to process requirements from agglomerated granules after granulating in the pharmaceutical industry. It is also dely used in such industries as medicine, chemical industr food. etc

原理

提升翻转整粒机有装料位与整粒位：装料位是将提升整粒机下降到定高度后翻转180度，使整粒料斗与沸腾制粒料仓相对接并手动手轮固定紧固，然后上升适当高度后，退出沸腾料仓推车，将提升整粒机翻转180度回到整粒料斗向上，再上升一定高度到与整粒后料斗相接位置进行整粒。

PRINCIPLE

There are loading position and granule sizing position in the lifting dry granulator. At the loading position, the lifting granule sizing machine is lowered to a certain height and turned for 180,So that the granule sizing hopper and fluid bed granulating silo are connected and tightened through the handwheel. After it is raised to an appropriate height, the fluid bed silo cart withdraws. The lifting granule sizing machine is turned for 180 and returns onto the granule sizing hopper, and then it rises to a certain height to connect with the granule sizing hopper for granule sizing maceutical industry. It is also dicine, chemical industry.

特点

该杋结构合理，性能稳定，操作方便，整机无死角，无外露螺钉。该机设有防误操作装置的出料蝶阀，拆卸方便，易于清洗，确保生产安全。整粒机可随锥斗升降到任意工艺高度，方便与下一工序设备密闭对接，有效地控制粉尘与交叉污染，优化了生产工艺，完全符合药品生产的GMP要求。

FEATURES

The machine has reasonable structure stable performance and convenient operation. The whole machine has no dead angle and no exposed screws. The machine is equipped with a discharge butterfly valve for preventing misoperation, which is easy to disassemble and easy to clean, ensuring production safety The granulator can be lifted to any process height with the cone bucket, which is convenient for sealing and docking with the next process equipment, effectively controlling dust and cross contamination, optimizing the production process and fully complying with the gmP requirements for pharmaceutical production

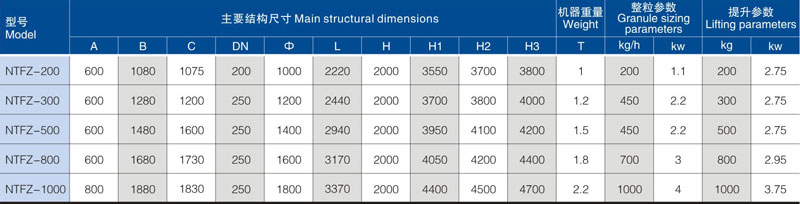

主要技术参数 MAIN TECHNICAL PARAMETERS

本公司可按用户特殊要求定制生产，如有变动，恕不预先通知!

Our company can customize the products according to special requirements of users. you will not be notified of any changes in advance
