沸腾干燥机

沸腾干燥机是制药工业固体制剂生产中普遍使用的工艺设备之一。它具有混合、干燥等多种功能。同时在制药、化工、食品等行业广泛使用。

  • 所属分类:制粒机系列
  • 浏览次数: 31
  • 产品概述
  • 性能特点
  • 技术参数

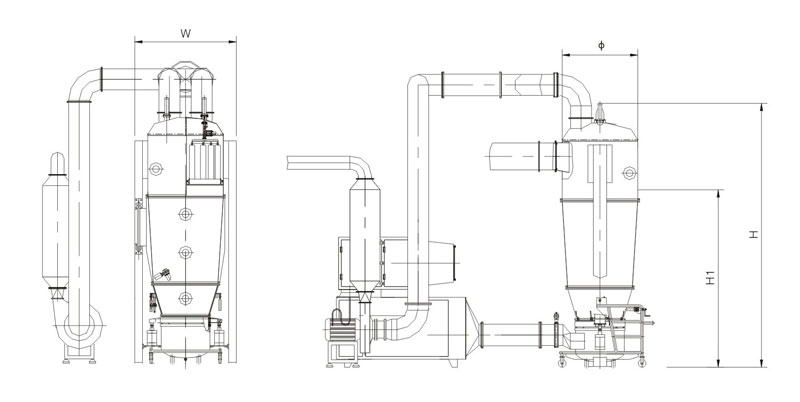

沸腾干燥机

Fluid bed dryer

提升加料机


用途

该机是制药工业固体制剂生产中普遍使用的工艺设备之一。它具有混合、干燥等多种功能。同时在制药、化工、食品等行业广泛使用。


APPLICATION

The machine is a process machine widely applied for solid preparation production in the pharmaceutical industry. It has such functions as mixing, drying, etc. It is also widely used in such industries as medicine, chemical industry, food, etc.


原理

该机由主机、空气处理系统、加热系统、控制系统等组成。工作时,物料加入沸腾千燥机的料仓,按工艺要求设定程序和参数,整机开始工作。空气经过空气处理系统过滤、经加热系统加热后进入主机内,物料经热空气流化、干燥,水份迅速蒸发,物料被快速干燥。按设定的程序与参数完成操作后,将料仓推出与固定提升转料机扣合提升出料或利用真空上料器抽到高位整粒机整粒,有效地控制粉尘与交叉污染。


PRINCIPLE

The machine is composed of the main machine, air handling system heating system, control system, etc. When it works, the materials enter the silo of the boiling dryer Set the procedures and parameters according to process requirements and the machine will start working After filtered by the air handling system and heated by the heating system, the air enters the main machine. After the materials are fluidified and dried by hot air, the moisture is evaporated rapidly and the materials are dried instantly. After the operations are completed according to the set procedures and parameters, the material silo is pushed out and assembled onto the fixed lifting material transterring machine for lifting discharging or is pumped to a high position by the vacuum charging machine for granule sizing by the granule sizing machine, so as to effectively control dust pollution and cross contamination


特点

◆流态化干燥、热质传递快;

◆在封闭负压下操作,无粉尘飞扬;

◆采用抗静电过滤材料,操作安全;

◆设备无死角,清洗彻底,无交叉污染;

◆满足GMP规范要求。


FEATURES

Fluidized drying, fast heat and mass transfer;

Operation under closed negative pressure, no dust flying

Using anti-static filter material, safe operation

The equipment has no dead angle, clean thoroughly, no crosscontamination

Meet the requirements of GMP regulations


提升加料机

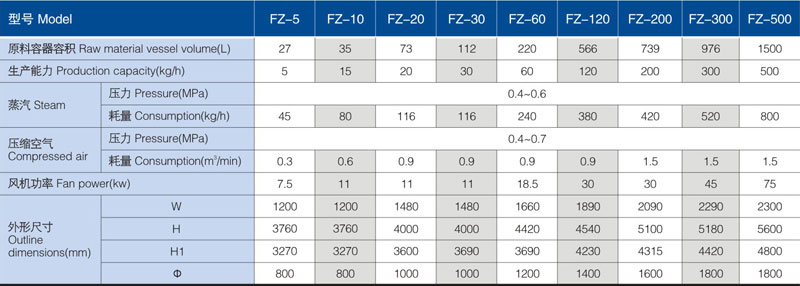

主要技术参数 MAIN TECHNICAL PARAMETERS


提升加料机

本公司可按用户特殊要求定制生产,如有变动,恕不预先通知!

Our company can customize the products according to special requirements of users. you will not be notified of any changes in advance
