低位湿法混合制粒机

低位湿法混合制粒机

Low wet granulator

用途

该机是制药工业固体制剂生产中普遍使用的工艺设备之一。它具有混合、制粒等多种功能，广泛应用于制药、食品、化工等行业。

APPLICATION

The machine is a process machine widely applied for solid preparation production in the pharmaceutical industry. It has such functions as mixing, granulating, etc. It is widely used in such industries as medicine, chemical industry, food, etc.

原理

物料通过加料机或真空上料系统加入搅拌容器中，经搅拌桨作多维切割呈流动状态得到充分混合。然后经喷枪系统或手工注入粘合剂，在搅拌桨和切刀的作用下制成均匀颗粒。颗粒通过出料口出料并转到下一工序。

PRINCIPLE

The materials are charged into the mixing vessel by the charging machine or vacuum charging system, and flow under a multi dimensional shearing status after mixing so that sufficient mixing is realized. The adhesive sprayed by the spray gun or injected manually will make the materials into even granules under the action of the mixing paddle and cutter. The granules will be discharged from the discharging port and transferred to the next procedure.

特点

◆本机采用卧式圆筒构造或圆锥形结构，结构合理。

◆充气密封驱动轴，清洗时可切换成水。

◆流态化造粒，成粒近似球形，流动性好。

◆较传统工艺减少25%合剂，干燥时间缩短。

◆每批次干混2分钟，造粒1-4分钟，工效比传统工艺提高4-5倍。

◆在同一封闭容器内完成，干混-湿混-制粒，工艺缩减，符合GMP规范。

◆整个操作具有严格的安全保护措施。

◆主药与辅料差异大时，仍能达到均匀结合，无分层现象。

FEATURES

This machine adopts horizontal cylinder structure or conical structure with reasonable structure

Inflatable sealed drive shaft can be switched to water during cleaning

Fluidized granulation, granules are approximately spherical and have good fluidity

25% less adhesive than traditional processes, shortening drying time

Each batch is dry mixed for 2 minutes, granulated for 1-4 minutes, and the work efficiency is 4-5 times higher than the traditional process

Complete in the same closed container, dry mixing-Wet mixing granulation, the process is reduced, in line with gMP regulations

The entire operation has strict safety protection measures

When the difference between the main drug and the auxiliary material is large, the uniform combination can still be achieved without stratification

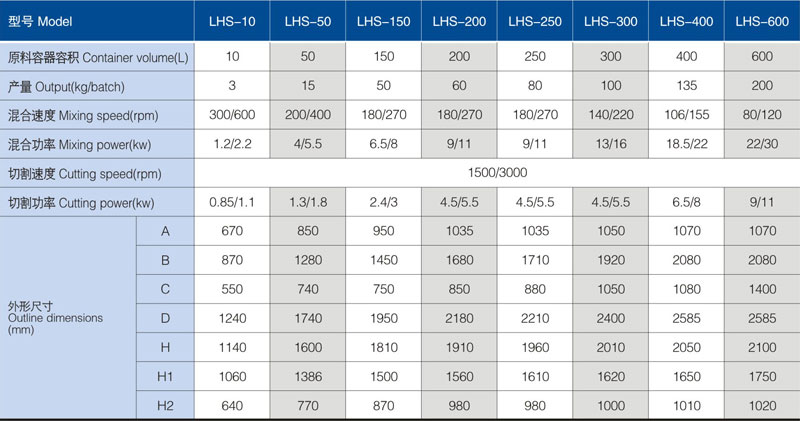

主要技术参数 MAIN TECHNICAL PARAMETERS

本公司可按用户特殊要求定制生产，如有变动，恕不预先通知！

Our company can customize the products according to special requirements of users. you will not be notified of any changes in advance.
