高位湿法混合制粒机

高位湿法混合制粒机粉状物料通过配料系统加到混合容器中,先经底部搅拌桨旋转推动做流化态运动,并得到充分混合,然后经压力喷枪注入粘合剂,使干粉变成湿润软材,同时在搅拌桨和侧壁高速切刀的双作用下制成均匀湿颗粒。

  • 所属分类:制粒机系列
  • 浏览次数: 241
  • 产品概述
  • 性能特点
  • 技术参数

高位湿法混合制粒机

High platform wet granulator

原理

粉状物料通过配料系统加到混合容器中,先经底部搅拌桨旋转推动做流化态运动,并得到充分混合,然后经压力喷枪注入粘合剂,使干粉变成湿润软材,同时在搅拌桨和侧壁高速切刀的双作用下制成均匀湿颗粒。


PRINCIPLE

The powder materials are fed into the mixing vessel through the dispensing system. Through rotation and push by the mixing get sufficient mixing. Then the adhesive is injected through theo paddle at the bottom, they first move under a fluidizing status pressure spray gun to turn the dry powders into wet and soft materials. Meanwhile, they are made into even wet granules under the double actions of the mixing paddle and the high-speed cutter on the side wall.


特点

◆整机采用优质不锈钢制造

◆设有特制搅拌桶,锥柱复合型结构,内壁转角光滑过渡,镜面抛光,不沾料,易清洗

◆物料在密闭搅拌桶中,一步即可完成混合制粒工序

◆采用門LC控制,搅拌制粒电机变频调速,全部操作分手动和自动

◆装有联锁保护装置,操作更安全

◆配有打印机,可自动打印所有工艺参数,原始记录与实际相符

◆可配湿法整粒机和摇摆颗粒机,与沸腾干燥机连线,组成全封闭的制粒生产线


FEATURES

The whole machine is made of high quality stainless steel

Special mixing barrel, tapered column composite structure, smooth transition of inner wall corner, mirror polishing, no material, easy to clean

The material is in a closed mixing tank, and the mixing granulation process can be completed in one step

Using PLC control, mixing granulating motor frequency control all operations are manual and automati

Equipped with interlocking protection device for safer operation

With printer, all process parameters can be printed automatically, and the original record matches the actual oIt can be equipped with wet granulator and rocking granulator, and connected with boiling dryer to form a fully enclosed granulation production line



用途

该机是制药工业固体制剂生产中普遍使用的工艺设备之一。它具有混合、制粒等多种功能 ,广泛应用于制药、食品、化工等行业。


APPLICATION

The machine is a process machine widely applied for solid preparation production in the pharmaceutical industry. It has such functions as mixing granulating, etc. It is widely used in such industries as medicine, food chemical industry, etc.

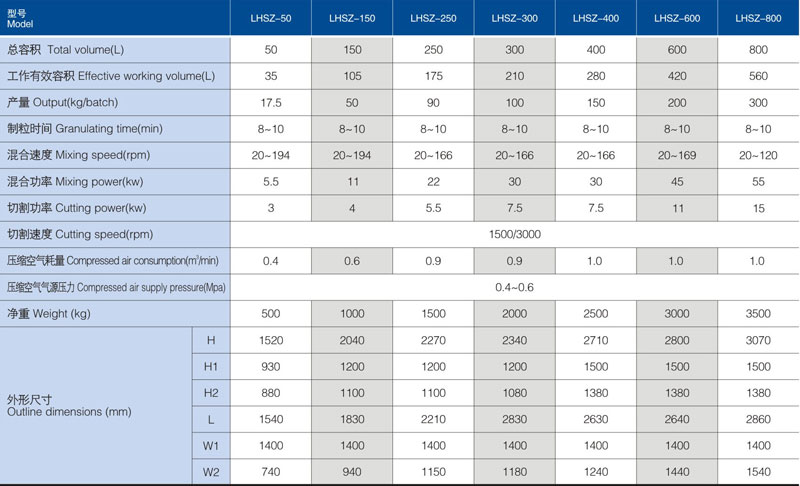

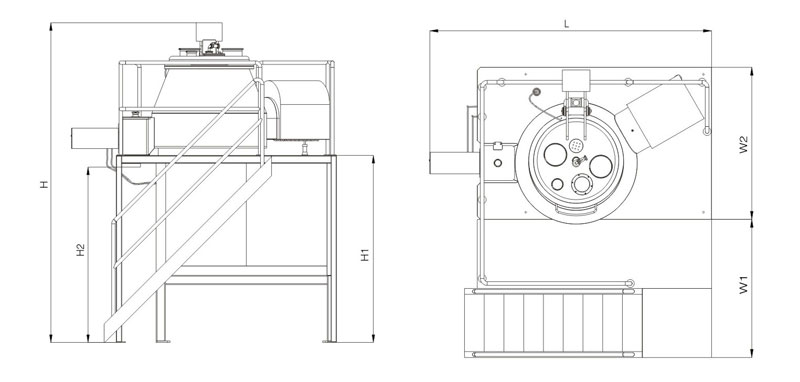

主要技术参数 MAIN TECHNICAL PARAMETERS


公司可按用户特殊要求定制生产,如有变动,恕不预先通知!

Our company can customize the products according to special requirements of users. you will not be notified of any changes in advance
